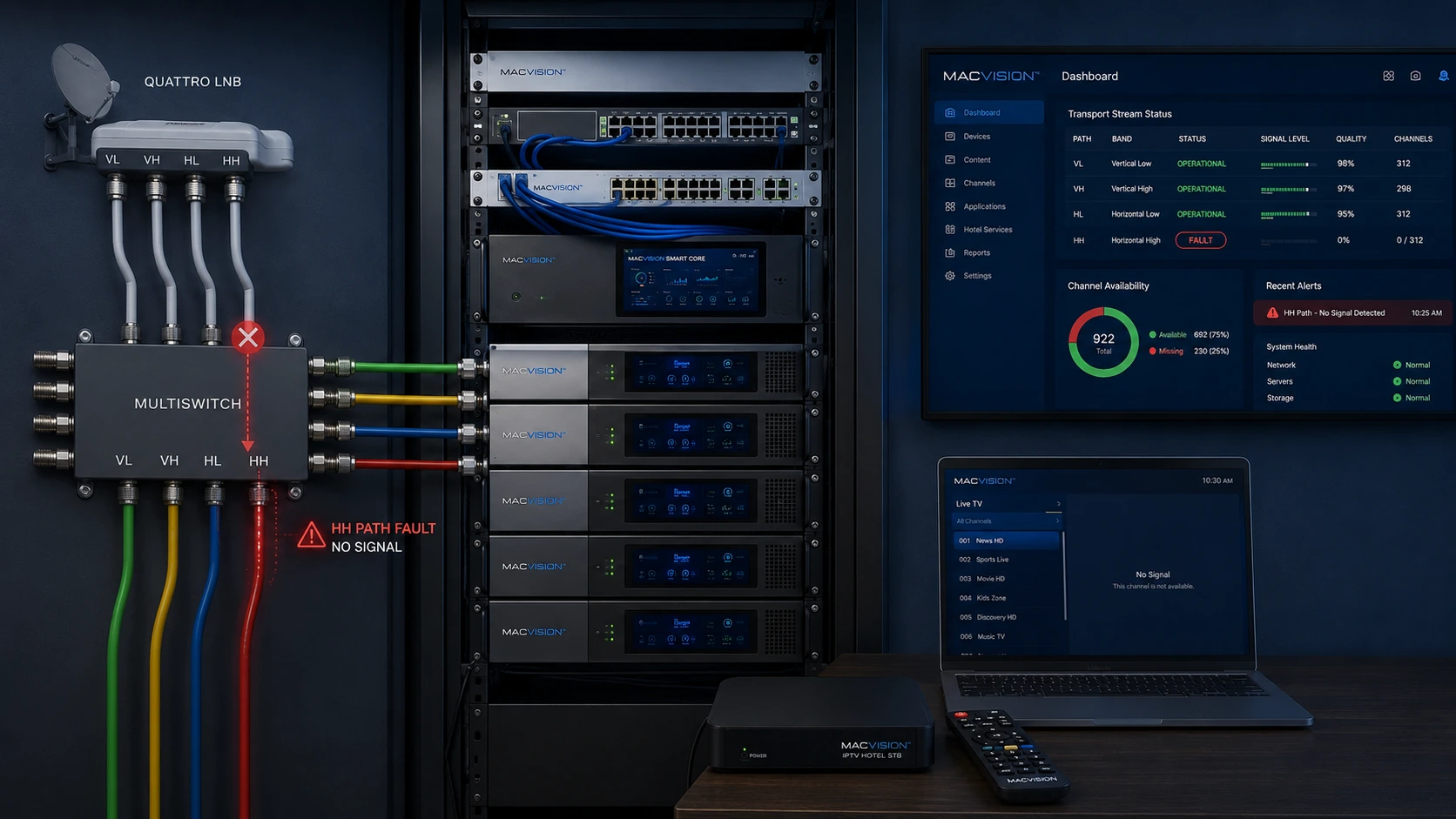

A multiswitch combines satellite quadrants and routes the requested band and polarization to each tuner. Internal power supplies, control detection, amplifiers and individual output ports can fail independently. The resulting channel loss may affect one tuner, one group of outputs, one polarization or one band. Because the switch sits between a healthy dish and the headend, it can produce convincing satellite symptoms while the LNB and tuner both test correctly in isolation.
What channel-loss patterns point to a defective satellite multiswitch?
Answer: A failed input stage usually removes the same quadrant from every output, such as all horizontal high-band services. A failed output port affects only the tuner connected to that port. A weak internal power supply may create intermittent problems as more tuners request current, while a control-detection fault can leave one output stuck on a single band or polarity. Map missing channels by transponder and by tuner port; the pattern reveals whether the failure follows an input quadrant, an output, or the whole switch.
How can a multiswitch be tested without replacing it immediately?
Answer: First measure all LNB feeds at the switch inputs and confirm the expected fixed quadrants or switchable signals. Move the affected tuner cable to a known-good output while keeping the tuner configuration unchanged. If channels return, the original output is faulty. For a suspected input fault, compare the same quadrant at several outputs and, where safe, bypass the switch with a direct feed. Check switch power voltage and temperature. Avoid swapping multiple cables at once because that destroys the evidence needed to identify the failed stage.
What should be verified after installing a replacement multiswitch?
Answer: Confirm compatibility with the LNB type, input frequency range, control method and required number of tuners. Reconnect VL, VH, HL and HH feeds to the correct inputs and verify output levels are neither too low nor excessive. Test reference transponders from every quadrant on multiple outputs, including the longest cable path. Measure MER and BER to ensure the new switch preserves quality. Label ports, document unused termination requirements and verify earth bonding before returning the IPTV headend to normal operation.
