Satellite and RF tuners require an input level within a defined operating window. Excessive level can compress the tuner front end, amplifier or multiswitch, creating intermodulation and reduced modulation quality. The strength indicator may show maximum while BER rises and channels become unstable. Overload is especially common when a high-gain amplifier is added to compensate for cable loss without measuring the actual level at each headend input.
Can an RF signal be too strong for an IPTV headend tuner?
Answer: Yes. When the input exceeds the tuner's linear range, the front end cannot reproduce the carrier accurately. Strong transponders mix with each other, the noise floor rises and MER falls. Symptoms include random pixelation across several frequencies, tuners that lock only after attenuation, or worse performance on the shortest cable runs. Maximum strength bars are not evidence of good reception. Compare the measured dBµV or dBm level with the equipment specification and evaluate MER before and after a known attenuation value.
How can overload be distinguished from weak signal when both cause pixelation?

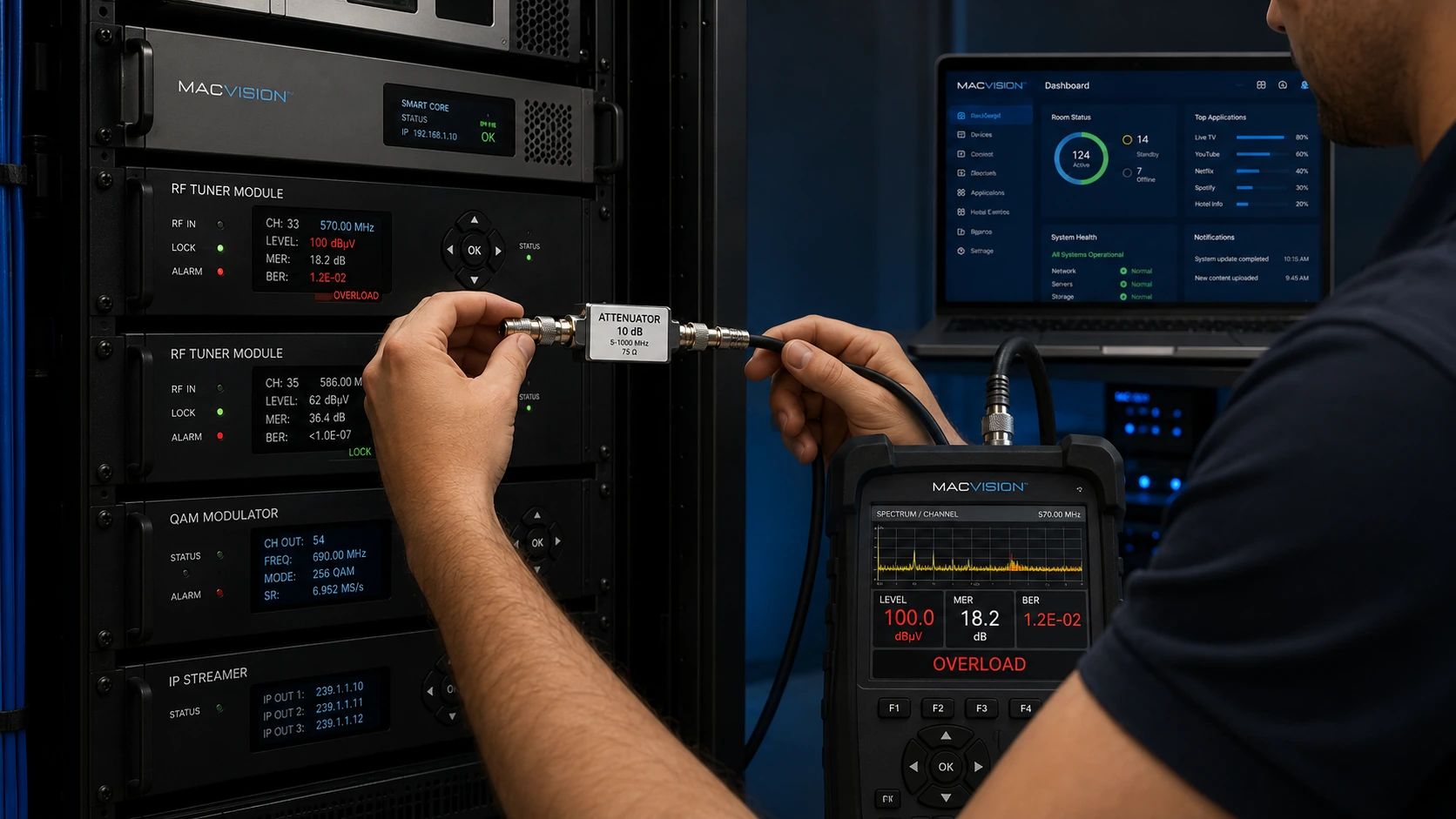

Answer: Insert a calibrated attenuator temporarily. If MER improves and errors decrease, the original input was likely excessive. If quality worsens, the system may already be signal-limited. A spectrum analyzer can also reveal flattened carrier tops, raised intermodulation products or amplifier compression. Check whether short runs fail while longer runs work, which is a common overload pattern. Do not rely only on automatic gain-control percentages because different tuners scale those readings differently.
What is the correct way to reduce excessive RF level in a headend?
Answer: Remove unnecessary amplification first and set any adjustable amplifier using measured output and tilt. Use fixed or variable attenuators at appropriate points while preserving sufficient level for the longest path. Ensure that the entire transponder band remains within range, not only one reference carrier. After adjustment, verify level, MER and BER at every critical tuner and check that the multiswitch itself is not being overdriven. Document final levels so later technicians do not reintroduce amplification based on a visual strength bar.
